0.4Mpa Carbon Steel Horizontal Leaf Oil Bleaching Filter Automatically Residue Discharging

0.4Mpa Carbon Steel Horizontal Leaf Oil Bleaching Filter Automatically Residue Discharging

Production Description

This product is of novel design, the main body of filter consists of filtration tank, screen, end-plate pullout device, automatic dreg discharging device, etc. During filtering, the filter aid is mixed up with material in the mixing cylinder then transmitted by pump onto the filter screen to form a filter cake layer. Once the stable filter cake is realized, the minute filter aid particles provide countless micro passages, which entrap the suspended impurity and let the clear liquid through. Therefore the real filtration is realized through the cake layer. In case that the filter cake over the surface of filter screen reaches certain thickness, or the filtration pressure is up to 0.4 MPa, the feeding shall be stopped, and compressed air or steam shall be employed to blow dry the cake, and then pull out the filter screen, the vibration dreg discharging device shall be switched on, the dregs shall be unloaded because of weight and vibration. As to sticky filter cake, manual help shall be provided to clean up the dregs.

Filter model list

Working principle

This product is of novel design, the main body of filter consists of filtration tank, screen, end-plate pullout device, automatic dreg discharging device, etc. During filtering, the filter aid is mixed up with material in the mixing cylinder then transmitted by pump onto the filter screen to form a filter cake layer.

Once the stable filter cake is realized, the feeding shall be stopped, and compressed air or steam shall be employed to blow dry the cake, then discharge the filtration cake .

Filter Plates

The filter screen plate is the major component for the filter. It consists of multiple layers of stainless steel screens of different specification. In the middle there is a passage for the filtrate, at the outside there is frame.

At the lower part of screen plate there is a nozzle for the discharge port which is inserted into the collection pipe, in between the nozzle and socket of collection pipe there is rubber “O” ring for sealing.

Main use and Application of Pressure leaf filter :

1. Filtration of pressed crude oil and remove mechanical impurities ;
2. Filtration of decolored oil and grease with carclazyte ;
3. Dewaxing filtration of oil and grease .

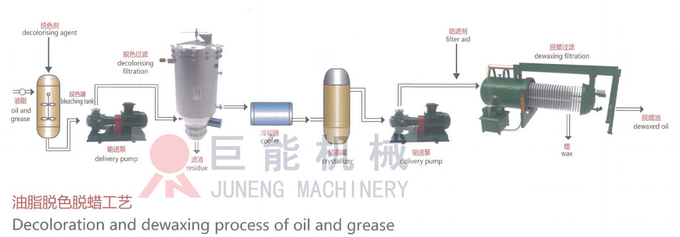

Decolorarion and dewaxing process of oil and grease

Horizontal Pressure Leaf filter Advantage

1. Filtration area range 5 to 500 Square meter

2. Ideal for high polish applications, 0.1 Micron removal

3. Dry and/ or wet solids discharge .

4. Automated closed system

5. Jackets available- steam/Water/Cooler

6. Control options-semi automatic or fully automatic.

Packing

Plastic film package inside, wooden case package outside
